BOSS 762 Series Indoor / Semi Outdoor
LED Display
Application:

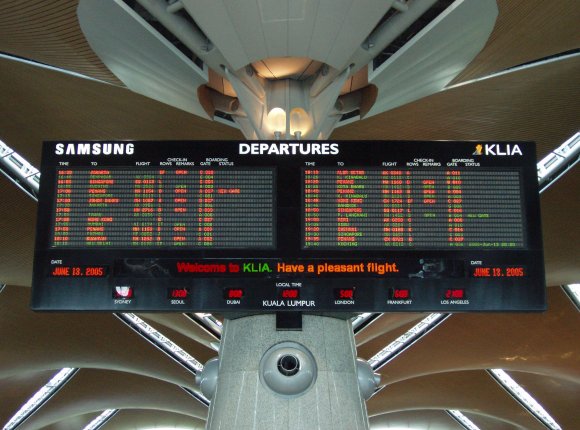

- Airport, railway, station, port, traveler guidance.
- Call center, factory, bank, foreign exchange, hospital.
- Welcome message, advertisement, etc. |
 |
Download
PDF |
| Rows |
Columns |
Approx. Display Dimension
HxW |
Char Height Per Line |
2.1" Char's Per Line |
Max Power Consumption |
Approx. Weight |
| 32 |
128 |
9.6” x 38.4” |
9.6" / 1
4.5 " / 2
3" / 3
2.1" / 4
|
21 / 2 |
100W |
4kg |
| 32 |
192 |
9.6” x 57.6” |
32 / 2 |
150W |
6kg |
| 32 |
256 |
9.6” x 76.8” |
42 / 2 |
200W |
8kg |
| 32 |
320 |
9.6” x 96” |
53 / 2 |
250W |
10kg |
| Can be customize according to requirements |
| Specifications |
| Pixel (LED) Color: |
Each dot can be red, green, or amber; |
| Center-to-Center Pixel Spacing (Pitch): |
0.3" (7.62mm) |
| Character Set: |
International character set |
| Memory Retention: |
Typically one month |
| Message Presentation: |
- Consisting of various modes: Hold, Rotate, Roll Up, Roll
Down.
- User programmable logos or graphics |
| Clock / Date: |
Date in multiple formats and time in 12/24-hour formats |
| Serial Communication: |
RS232, RS485, Dial-up Modem |
| Power: |
240 VAC ±10% 60Hz |
| Operating Temperature: |
-10ºC~+60 ºC |
| Energy Efficient: |
Consume up to less than 1/40 the power of
incandescents |
|
| |
|
|
