BOSS 3125 Series Outdoor
LED Display
Application:

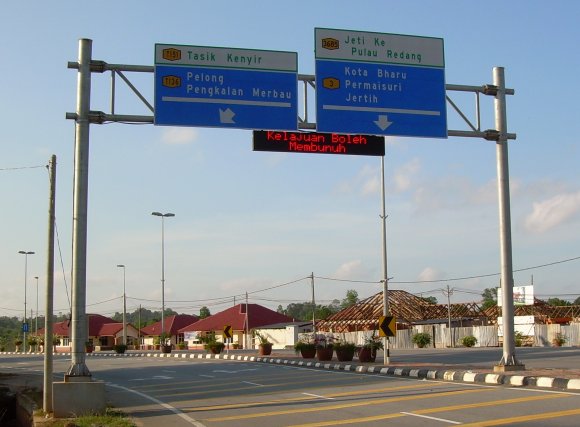

Expressway, Urban Road, traffic guidance, traffic information,
etc. |
 |
Download
PDF |
| Rows |
Columns |
Approx. Display Dimension
HxW |
Char Height Per Line |
8.6" Char's Per Line |
Max Power Consumption |
Approx. Weight |
| 16 |
56 |
19.6" x 68.8" |
18.4" / 1
8.6" / 2
|
9 / 2 |
210W |
50kg |
| 16 |
112 |
19.6" x 137.7" |
18 / 2 |
420W |
100kg |
| 16 |
168 |
19.6" x 206.4" |
27 / 2 |
630W |
150kg |
| 16 |
224 |
19.6" x 275.2" |
36 / 2 |
840W |
200kg |
| Can be customize according to requirements |
| Specifications |
| Pixel (LED) Color: |
Red |
| Pixel Pitch: |
1.23" (31.25mm), 4 LEDs per pixel |
| Pixel Luminance: |
Viewable in direct sunlight |
| Character Set: |
International Character Set |
| Memory Retention: |
Typically one month |
| Message Presentation: |
- Consisting of various modes: Hold, Rotate, Roll Up, Roll
Down.
- User programmable logos or graphics |
| Clock / Date: |
Date in multiple formats and time in 12/24-hour formats |
| Serial Communication: |
RS232, RS485, Dial-up Modem |
| Power: |
240 VAC ±10% 60Hz |
| Case Material: |
Outdoor metal panel |
| Operating Temperature: |
-10ºC~+60 ºC |
| Mounting: |
Single or double pole, hanging |
| Enclosure: |
Back-serviceable aluminum, steel mounting brackets |
| Energy Efficient: |
Consume up to less than 1/40 the power of
incandescents |
|
| |
|
|
