LED General Lighting

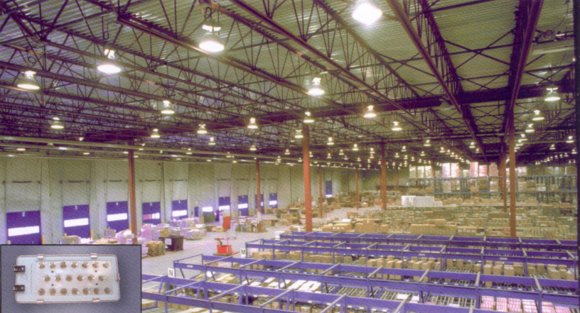

Application: Factory, conference, office.


Specifications
Model

BOSS-GE-44-Zx ("x" can be W1, W2, W3 and G)
BOSS-GE-22-Z ("x" can be W1, W2, W3 and G)
Material Aluminum die casting lamp and luminaire as one, surface anodizing.
Protection Level IP65
Shock Proof Protection Level Grade I
Working Environment -30°C~+40°C
Input Voltage AC160V~AC250V (wide voltage area, suitable for many practical terms).
Luminaire Lifespan 50,000 hours, light depreciation less than 30%, (more than 10 years for 12 hours per day)
Color Temperature Can be customized between 3500~7000K
CRI 57~80
Power 44W, 22W
Luminious Flux 1700~2000lm, 1000~1200lm
Size 436mm(W) x 200mm(H) x 62mm(D)
Weight 4~4.5kg
Installation Method Ceiling Hang
